GE 20” Custom Hood Insert w/ Dimmable LED Lighting
What we found

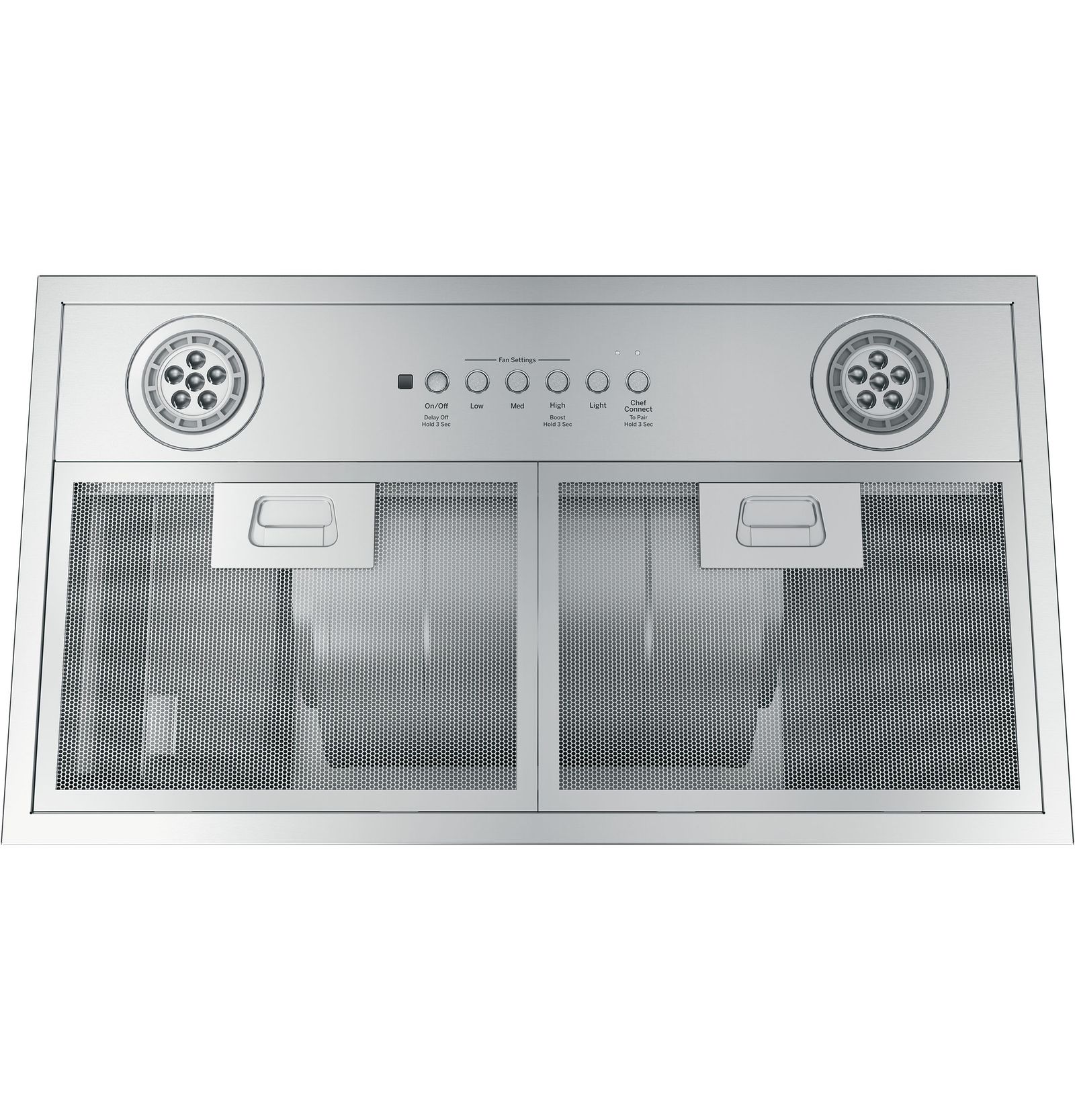

This is a GE UVC7300SLSS range hood insert, a 20-inch ventilation unit meant to be built into custom cabinetry or a hood liner above a cooktop or range. It measures 20.5 inches wide, 11.25 inches front to back and 9.625 inches tall, and is designed for a 30-inch cabinet opening; it wires to a standard 120V, 60Hz circuit and draws 2.9 amps. The blower is rated at 390 CFM with four fan speeds, and venting is convertible, so it can be ducted outside or set up to recirculate with a charcoal filter. It has dual dimmable LED lights over the cooking surface, push-button controls, a remote control, a heat sensor that switches the fan on automatically at high temperatures, and dishwasher-safe metal grease filters. It suits someone building or replacing a custom wood or plaster hood over a 30-inch range and who does not want a visible branded hood canopy.
- Secure checkout by Stripe
- 30-day store warranty, parts and labour
- 1,802 sold & picked up
Will it fit?
InchesThis unit is 20.5″ × 11.3″ × 9.6″ W × D × H. Measure the opening, not the old machine. Maker’s figures — we haven’t put a tape on this one.
